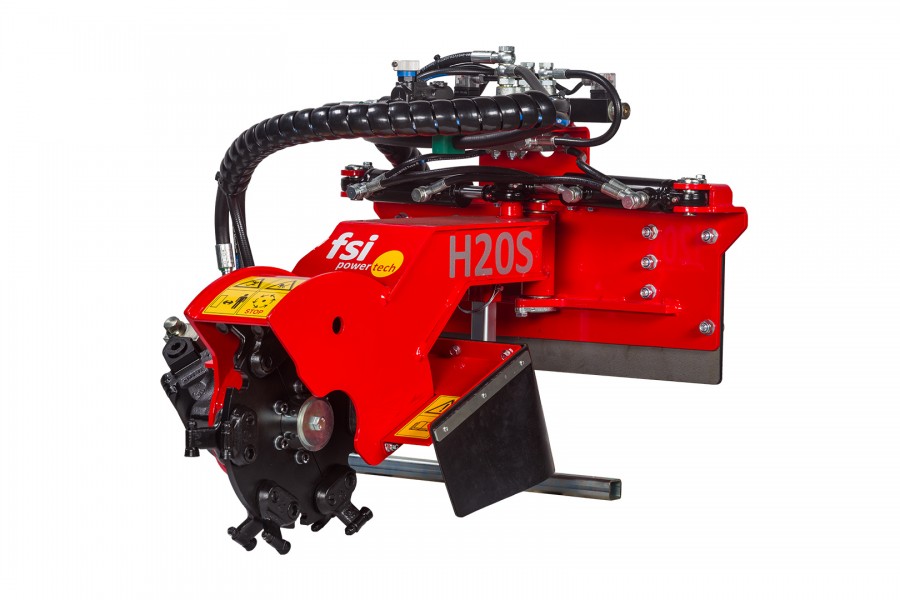

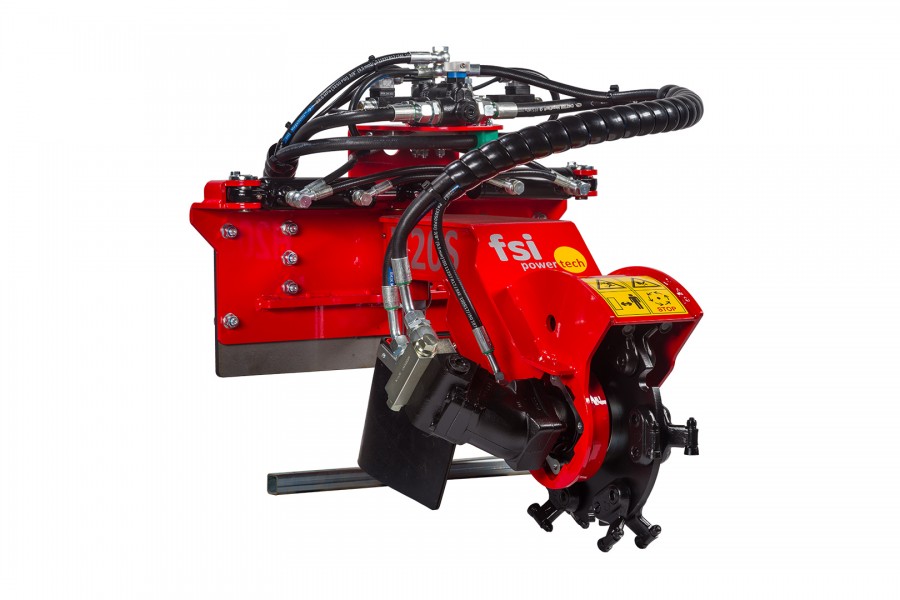

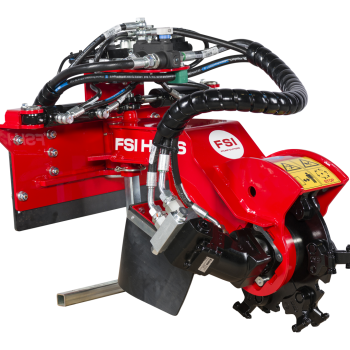

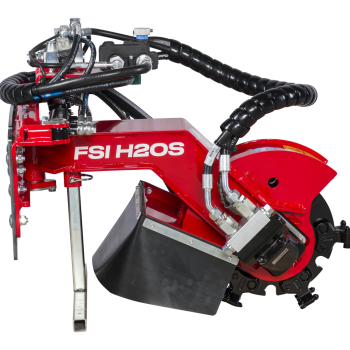

FSI H20S is a stump grinder attachment with an integrated swing movement for loaders and tool carriers. The recommended machine size is 1.5 – 2.5 t.

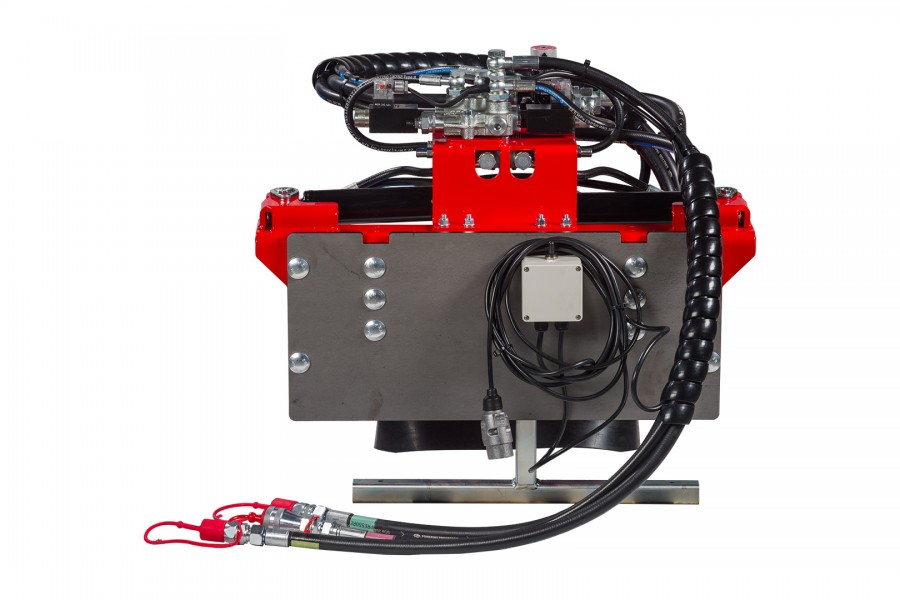

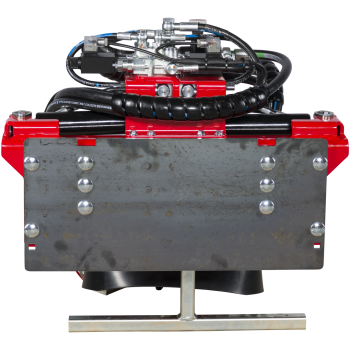

The H20S is attached using a tool grip/coupling, the stump cutter Is supplied with an uncoated attachment plate, bolted to the machine. On the plate an attachment suitable for the tool carrier can, be fitted. FSI can if needed supply adaptor brackets for the most common loaders and tool carriers.
The machine is equipped with a flange to attach the tool grip.
Two hydraulic cylinders ensure a stable sweep moment in either direction. Control of the sweeping movement can be done either from the tool carrier (5 hose version) or by an electronic control box (3 hose version) depending on the specifications and connectors available on the tool carrier or loader.
Regulate the sweep function, by adjusting a valve to regulate the oil flow. Decrease the flow for a slower sweep or increase the flow for a faster sweep.
FSI 21 - 12 pcs
94 cm
Max 2.5 cm per sweep
92 kg
1.5 - 2.5 ton
12-22 kW / 15-30 HP
30-50 l/min @ max 250 bar
